Protection against Step and Touch Voltage

CUI Conductors for preventing touch voltage at down conductors. Conductors and clamps for potential control for protection against step voltage.

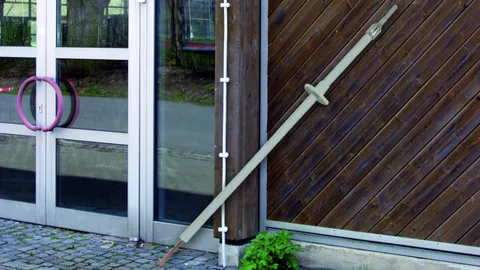

CUI Conductor

Touch voltage on down conductors can be prevented by using the CUI Conductor.

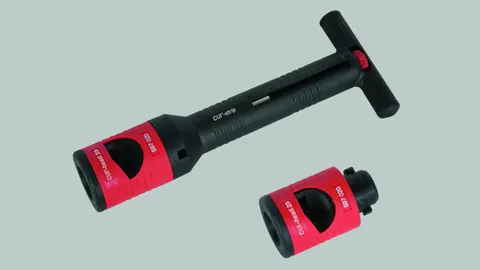

Stripping Tool for CUI Conductors

Tool for stripping the XLPE insulated CUI Conductor (outer diameter 20 mm).
  • Tool consists of a handle and an exchangeable cutting heads
  • Stripping length of the CUI Conductor is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. The dial on the handle shows the length set.
HandlingPosition the cutting head at the cut-off end of the conductor and turn clockwise applying light pressure to cut/strip it.

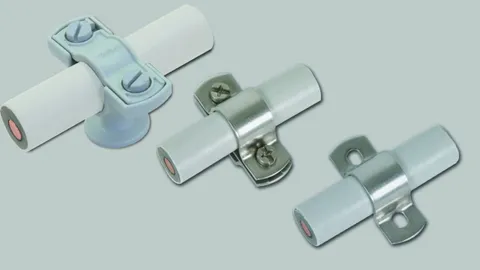

Conductor Holders for CUI Conductor

For installing the CUI conductor on walls or façades.

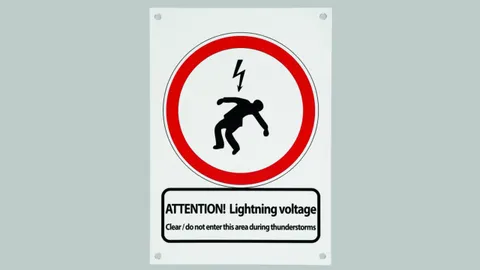

Sign Lightning voltage

Sign warning of the hazard of direct lightning strikes, e.g. on park decks (without air-termination systems) or other areas.

Sign Step and touch voltage

In case of step and touch voltage hazard for living beings.
In accordance with the requirements of IEC/EN 62305-3.

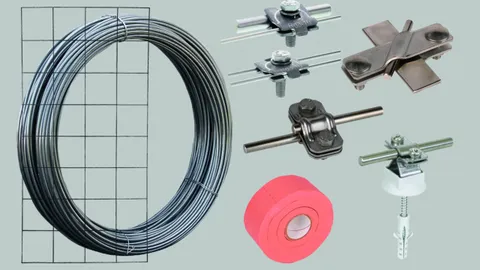

Potential Control

Mesh mats for potential control in shelters and entrance areas.
