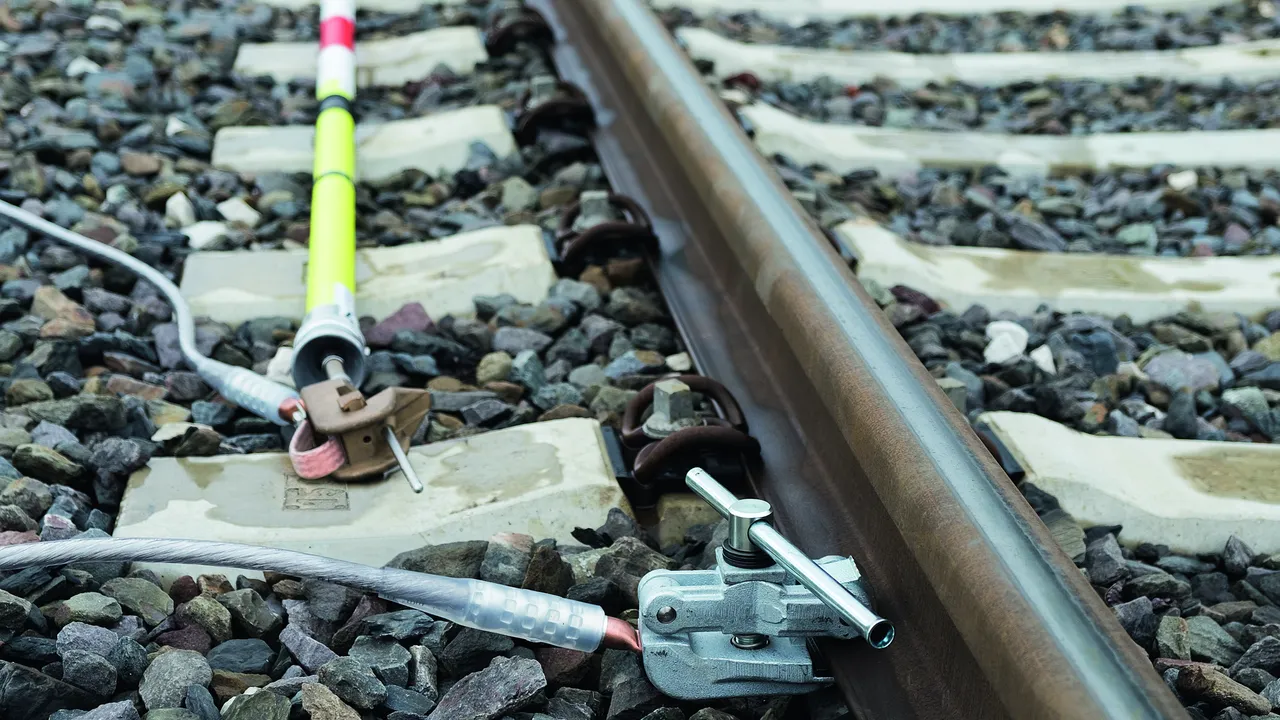

Earth Connecting Elements for Railway Applications
:quality(98)/www.dehn.at/store/f/50792078/HDVORSCHAU/751121a1_16-9.jpg)
:quality(98)/www.dehn.at/store/f/50792078/HDVORSCHAU/751121a1_16-9.jpg)
Art.-Nr. 792450 SAK PFE KN
GTIN 4013364051744, Zolltarifnr. (EU): 85359000, Bruttogewicht: 2.82 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/www.dehn.at/store/f/50792083/HDVORSCHAU/792450.jpg)
:quality(98)/www.dehn.at/store/f/50792083/HDVORSCHAU/792450.jpg)
:quality(98)/www.dehn.at/store/f/50792084/HDVORSCHAU/792450m_D.jpg)
:quality(98)/www.dehn.at/store/f/50792084/HDVORSCHAU/792450m_D.jpg)
Technische Daten
| Anti-rotation cable lug | PK2 (Ø10.5 mm) |
| Cable material | Cu |
| For cable cross-section | 50 mm2 |
| Max. short-circuit current Ik 0.06 s | 34.0 kA |
| DB drawing No. | 3 Ebgw 01.53 Bl. 1 |
| DB material No. | 157 535 |
Art.-Nr. 792451 SAK PFE KN AB29
GTIN 4013364230170, Zolltarifnr. (EU): 85359000, Bruttogewicht: 2.82 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/www.dehn.at/store/f/50792086/HDVORSCHAU/792450.jpg)
:quality(98)/www.dehn.at/store/f/50792086/HDVORSCHAU/792450.jpg)
:quality(98)/www.dehn.at/store/f/50792087/HDVORSCHAU/792450m_D.jpg)
:quality(98)/www.dehn.at/store/f/50792087/HDVORSCHAU/792450m_D.jpg)
Technische Daten
| Anti-rotation cable lug | PK2 (Ø10.5 mm) |
| Cable material | Al |
| For cable cross-section | 70 mm2 |
| Max. short-circuit current Ik 0.06 s | 32.0 kA |
| DB drawing No. | Ebgw 01.82 |
Art.-Nr. 792455 SAK PFE ARA
GTIN 4013364376724, Zolltarifnr. (EU): 85359000, Bruttogewicht: 3.07 kg, VPE: 1.00 pc(s)
VorgängerAbbildungen
:quality(98)/www.dehn.at/store/f/50792092/HDVORSCHAU/792455.jpg)
:quality(98)/www.dehn.at/store/f/50792092/HDVORSCHAU/792455.jpg)
:quality(98)/www.dehn.at/store/f/50792093/HDVORSCHAU/792455m_D.jpg)
:quality(98)/www.dehn.at/store/f/50792093/HDVORSCHAU/792455m_D.jpg)
Technische Daten
| Anti-rotation cable lug | PK2 (Ø10.5 mm) |
| Cable material | Cu |
| For cable cross-section | 50 mm2 |
| Max. short-circuit current Ik 0.06 s | 32.0 kA |
| DB drawing No. | 3 Ebgw 01.53 Bl. 2 |
Art.-Nr. 792456 SAK PFE ARA AB29
GTIN 4013364446625, Zolltarifnr. (EU): 85359000, Bruttogewicht: 3.20 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/www.dehn.at/store/f/50792096/HDVORSCHAU/792456.jpg)
:quality(98)/www.dehn.at/store/f/50792096/HDVORSCHAU/792456.jpg)
:quality(98)/www.dehn.at/store/f/50792097/HDVORSCHAU/792455m_D.jpg)
:quality(98)/www.dehn.at/store/f/50792097/HDVORSCHAU/792455m_D.jpg)
Technische Daten
| Anti-rotation cable lug | PK2 (Ø10.5 mm) |
| Cable material | Al |
| For cable cross-section | 70 mm2 |
| Max. short-circuit current Ik 0.06 s | 32.0 kA |
| DB drawing No. | 3 Ebgw 01.83-1 |
Art.-Nr. 773251 UK K25 FL30 SQL
GTIN 4013364005990, Zolltarifnr. (EU): 85359000, Bruttogewicht: 901.00 g, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/www.dehn.at/store/f/50792102/HDVORSCHAU/773331.jpg)
:quality(98)/www.dehn.at/store/f/50792102/HDVORSCHAU/773331.jpg)
:quality(98)/www.dehn.at/store/f/50792103/HDVORSCHAU/773251m_D_Klemmbereich.jpg)
:quality(98)/www.dehn.at/store/f/50792103/HDVORSCHAU/773251m_D_Klemmbereich.jpg)
Technische Daten
| For fixed ball point Ø | 25 / 30 mm |
| Anti-rotation cable lug | PK2 (Ø10.5 mm) |
| For cable cross section Cu | 50 mm2 |
| Max. short-circuit current Ik 0.06 s | 34.0 kA |
| DB drawing No. | 4 Ebgw 01.59 |
| DB material No. | 157 538 |
Art.-Nr. 774251 UK K25 FL30 HG
GTIN 4013364006003, Zolltarifnr. (EU): 85359000, Bruttogewicht: 955.00 g, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/www.dehn.at/store/f/50792107/HDVORSCHAU/774330.jpg)
:quality(98)/www.dehn.at/store/f/50792107/HDVORSCHAU/774330.jpg)
:quality(98)/www.dehn.at/store/f/50792108/HDVORSCHAU/774251m_D_Klemmbereich.jpg)
:quality(98)/www.dehn.at/store/f/50792108/HDVORSCHAU/774251m_D_Klemmbereich.jpg)
Technische Daten
| For fixed ball point Ø | 25 / 30 mm |
| Anti-rotation cable lug | PK2 (Ø10.5 mm) |
| For cable cross section Cu | 50 mm2 |
| Max. short-circuit current Ik 0.06 s | 34.0 kA |
| DB drawing No. | 4 Ebgw 01.64 |
| DB material No. | 157 537 |
